RPBHB Series Intumescent Pad
For Marine Electrical Switch and Socket Boxes

Application:
Installed inside fire-resistant marine electrical switch boxes or socket boxes on one or both sides of bulkhead or compartment walls.

Material: Expanded graphite type flame retardant material
Color: Black, smooth surface
Expansion Ratio: 20–30 times

Features:

  • Fire, heat, and smoke sealing for marine environments

  • Waterproof and corrosion-resistant clean finish

  • Easy to install – no adhesive needed

  • RoHS compliant

  • Suitable for damp or high-humidity areas on ships

Send Inquiry

What are the benefits of using RPBHB Series Intumescent Pad?

  1. RPBHB Series Intumescent Pad for Marine Electrical Switch and Socket Boxes

    Application:
    Designed for back-to-back installation inside fire-resistant marine electrical switch boxes and socket boxes within bulkhead or compartment walls (single or both sides).

    Material: Intumescent compound
    Color: Black with a smooth surface
    Expansion Ratio: 20–30 times

    Features:

    • High Expansion Performance
      Expands rapidly when exposed to heat, forming an effective fire, heat, and smoke seal for marine environments.

    • Waterproof & Corrosion-Resistant Surface
      Moisture- and salt-resistant material ensures long-term reliability, even in high-humidity marine conditions.

    • Smooth, Clean Appearance
      Neat finish with no additional surface treatment required.

    • Quick and Easy Installation
      Flexible pad is easy to insert—no adhesive or special tools needed.

    • Versatile Marine Use
      Suitable for a variety of marine electrical enclosures, enhancing fire safety in wall-mounted installations.

    • Environmental Compliance
      RoHS-compliant, non-toxic, and environmentally friendly.

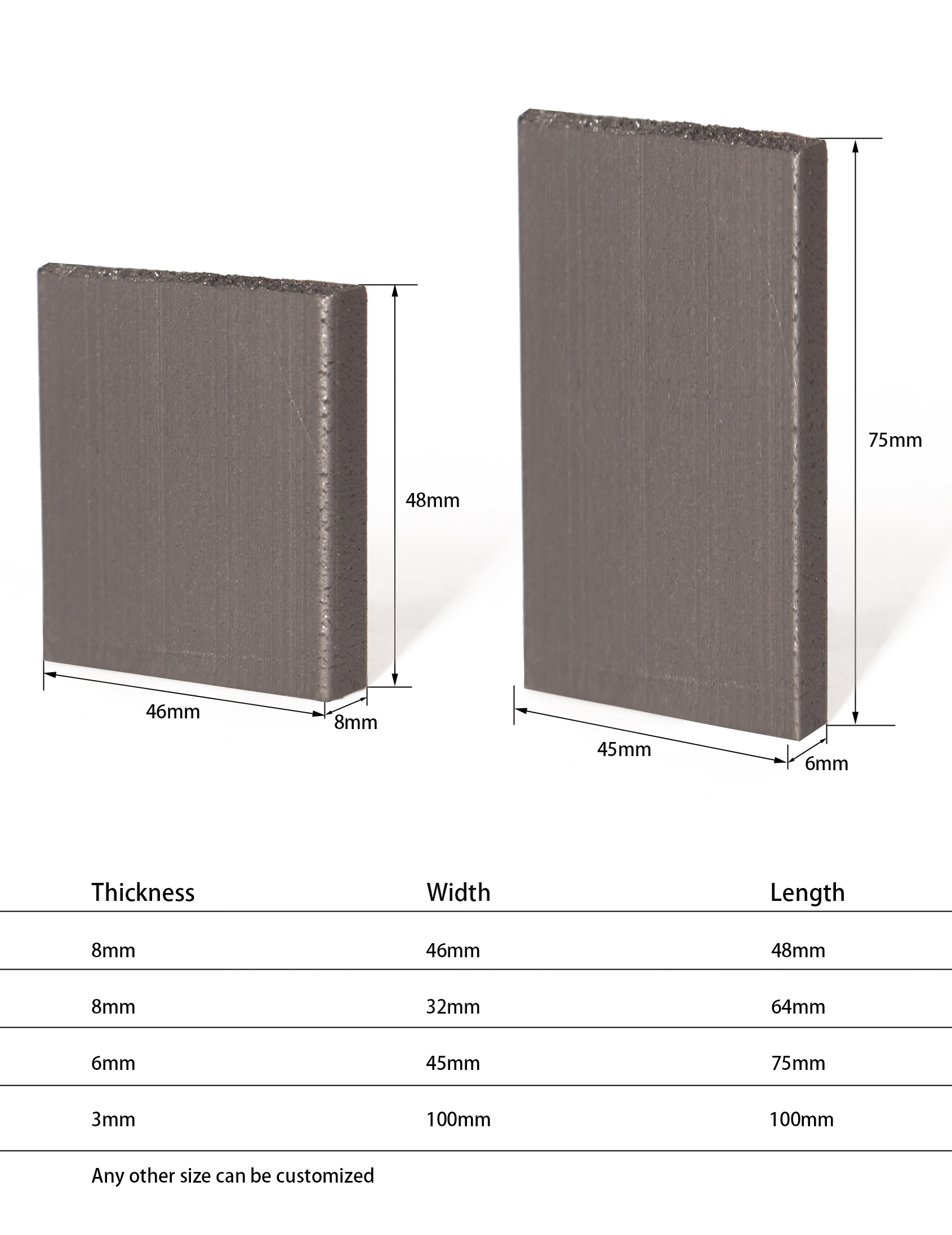

Thickness

Width

Length

8mm

46 mm

48 mm

6mm

45mm

75mm

3mm

100mm

100mm

8mm

32mm

64mm

Any other size can be customized

Get Your Custom Intumescent Fire Door Strips

RESSA is a trusted supplier of full range of intumescent fire door strips, with years of experience in creating high-quality fire protection solutions. It specializes in manufacturing high-quality custom fire door seals and gaskets to cover various need of customers. Here are your custom selections:

Color

A wide range of customizable colors options of our intumescent fire door strips are available for fire door strips, black red grey brown cream and customized colors. This allows the sealings with your doors and frames design, ensuring a cohesive and professional appearance.

Size

We offer a wide range of sizes to meet customers’ needs. Whether you need flexible fire door strips, rigid fire door strips or any special sizes of fire door strips, we will cooperate to design. We provide the length cutting service for accurate length requirement within  (+1mm, -1mm) tolerance.

Material

Customization of different intumescent materials are available your spefic designed fire doors, including graphite intumescent materials and sodium silicate intumesent materials. Helping to enhance the fire protection for your fire doors and meet different test standards.

Get A free quote

Features that Make Our Intumescent Fire Door Strips Unique

expanding RESSA RPB Series Intumesent Fire Strips

Advanced Expansion Technology

RESSA intumescent fire door strips are engineered with a proprietary heat-activated expansion process that ensures rapid and uniform swelling of seals in fire, creating an impenetrable barrier against fire and smoke.

Superior Self Adhesive Performance

Surface mounted fire door strips equipped with industrial-grade adhesive, our strips self adhere firmly to a variety of surfaces, ensuring a long-lasting seal that won’t degrade over time or under extreme temperatures.

intumescent -RESSA RPB Series Fire door strips

Multi-Functional Sealing Performance

Beyond fire door insulation, some our intumescent fire door strips also offer excellent waterproof property, smoke prevent property, acoustic insulation and thermal properties, adding additional value to the installation.

BS476 Test RESSA RPB Series Intumesent Fire Strips

Tested Prooved and Certified Quality

Our products pass the testing of fire doors integrity and insulation test according to the BS476 test standard and have received certification from recognized safety standards organizations, assuring their effectiveness and reliability.

Manufacturing Process of Intumescent Fire Door Strips

  1. Raw Material Preparation: Gather materials including different kinds of fireproof intumescent materials, self adhesive, additives… ensure material expand to meet quality standards of fire doors requirement.
  2. Mixing: Mix the raw materials according to the formula and prepare them under specific temperature and humidity conditions. This may involve blending the expanding materials with other additives to achieve the desired physical and chemical properties.
  3. Extrusion or Calendering: Use an extrusion machine or pressing machine or inserting machine to shape the mixed intumescent materials, forming the initial shape of the intermittent strips.
  4. Cutting and Shaping: Cut the intermission strips to the specific dimensions and shapes. Precise molding may be achieved using molds or cutting tools.
  5. Quality Testing: Perform quality tests, including dimension checks, expansion performance, fire resistance, etc.for intumescent gasket.
  6. Packaging and Dispatch:Package the qualified intumescent strips and prepare them for dispatch to the market.
GET A FREE QUOTE
Intumescent strips production process

Our Certificates in Intumescent Fire Door Strips

RESSA Test certificate (4)
RESSA Test certificate (5)
RESSA Test certificate (6)
RESSA Test certificate (1)

Ready to Get the Perfect Fire Door Strips?

Contact Us to Get A Free Consultation

Fire Door Strips FAQs

Fire Door Strips are specialized seals installed on fire doors to prevent the passage of smoke, flames, and toxic gases during a fire, enhancing the door’s ability to compartmentalize and contain the spread of fire.

Over-painting of fire door strips should not compromise performance in a fire situation – however, do not suggest paint over fire door strips as this will certainly compromise the sealing containment performance and use life. If the intumescent strips on fire doors has already been painted over, you will need to replace it. Our seals are available in a range of colours, plus woodgrain and metallic finishes, so over-painting should not be necessary.

In the event of a serious fire, fire doors are one of the most important components in ensuring safe exit, containing the fire and saving lives. But they can be rendered useless by not using the correct components including intumescent strip. Gaps around the four sides of a fire door leaf are essential, it is the only way the door can open and close. But these gaps create a point of weakness, where fire can take hold and destroy the door, and toxic and smoke can pass through. RESSA intumescent strip works by sealing around the edges and gaps of a fire door and door frames in the event of a fire.

In essence, all intumescent do the same job, but not necessarily in the same way. You’ll need to know which specifications you require; consult our technical team to discuss this area in depth at [email protected].

Yes, RPB Series flexible fire door strips are suitable for both new builds and for retrofitting into existing structures, providing an effective fire-stopping solution. The intallation method is very easy by self-adhesive.
