Fire Resistant Air Transfer Grilles

Graphite and sodium silicate fireproof expansion seals (also known as fireproof expansion grilles) are two mainstream fireproof materials, widely used in fire doors, vaults, firewalls and other high fireproof and heat insulation demand scenarios. Although the two have similar functions, the material properties and application positioning are significantly different:
1. Sodium silicate fireproof expansion seals
Core component: based on hydrated sodium silicate (zeolite), supplemented by inorganic adhesives.
Trigger temperature: 120–150°C
Expansion multiple: 3–5 times
After expansion, a high-pressure foam structure is generated, which quickly fills the gap and has outstanding cost performance.
2. Graphite fireproof expansion seals
Core component: expanded graphite as the main body, and the performance is enhanced by interlayer compound modification.
Trigger temperature: 180–200°C
Expansion multiple: 7–30 times
Rapidly expands at high temperature to form a dense carbon layer, with excellent air tightness, which can effectively isolate flames and high-temperature gases.
Send Inquiry

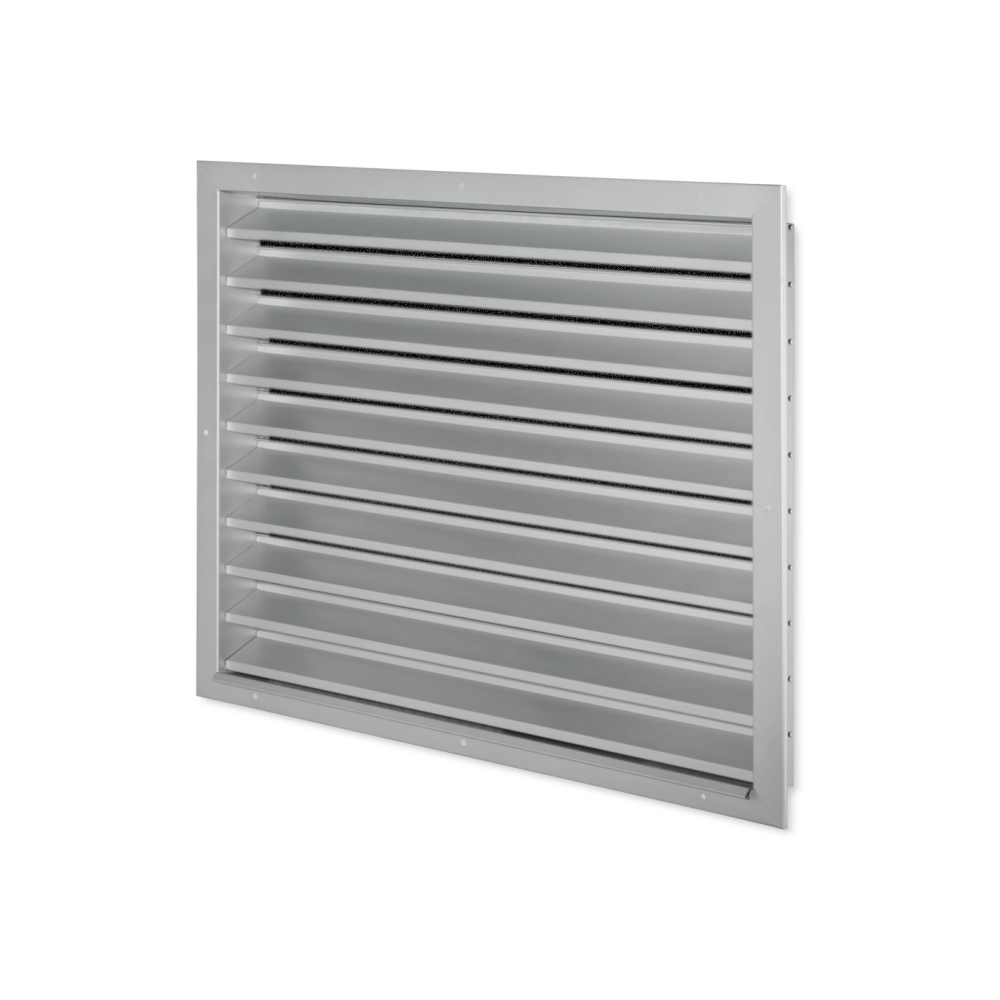

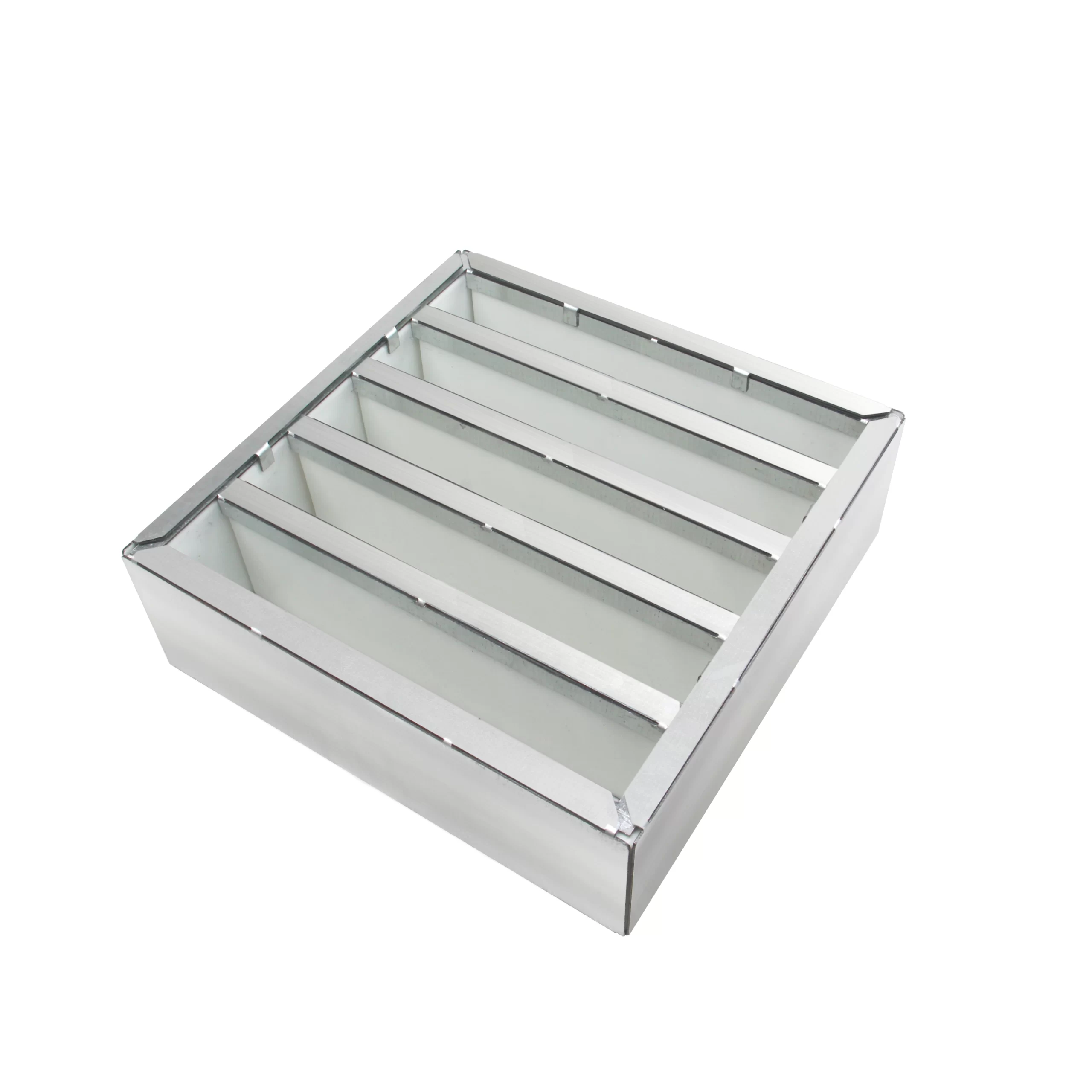

RYZW-Grille Fire Resistant Air Transfer Grilles

The function of intumescent fireproof damper is to allow the air between doors,walls and pipes in buildings to flow freely.In the event of a fire,product expands under the action of heat,preventing heat smoke and flame spreading.

Action temperature from 100-120C
Damper closes quickly(usually within 5 minutes,depending on heat exposure)
Easy to install and for indoor applications
No toxic gas and flying ash during product expanding process

Send Inquiry

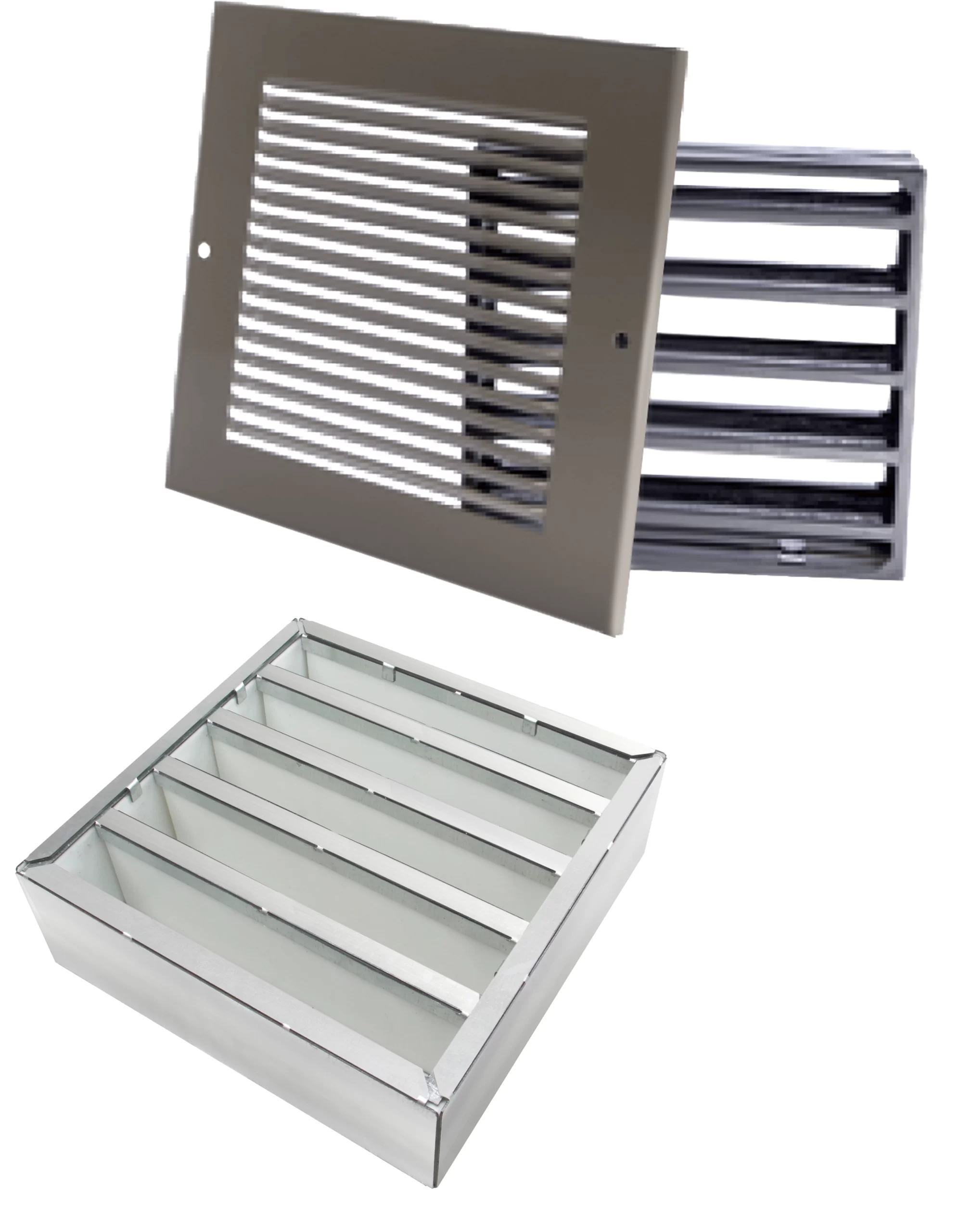

Fire Resistant Air Transfer Grilles — Functions and Advantages

  1. Normal Temperature Ventilation Function
    These fire-resistant louvered vents can be installed in building components such as walls and doors, allowing air to circulate freely during normal use, which aids in indoor ventilation.

  2. Automatic Fire and Smoke Blockage During a Fire

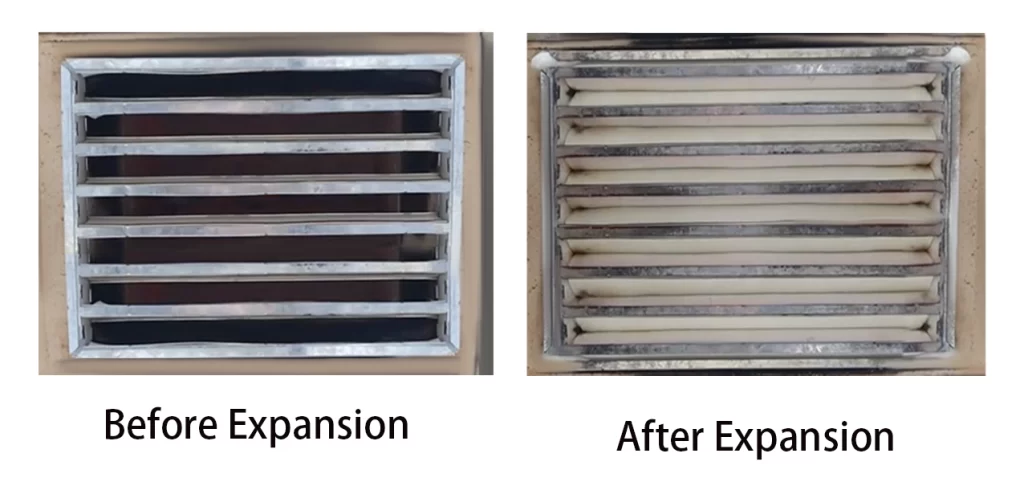

    In the event of a fire, high temperatures activate the built-in intumescent blades, causing them to expand rapidly and fill the ventilation openings.

  3. Prevents the Spread of Flames, Smoke, and Toxic Gases
    Thanks to the thermal expansion properties of the blades, the product effectively blocks the spread of flames, smoke, and toxic gases to adjacent spaces, ensuring personnel safety and building integrity.

  4. No External Power or Mechanical Drive Required
    This type of fire protection device operates as a passive safety structure, requiring no electricity or sensors to activate automatically in high-temperature environments, ensuring stability and reliability.

Rectangular Shape W100-600mm *H100-600mm

Thickness 25mm 40mm 50mm 60mm

Round Shape Diameter 100-400mm

Thickness 40mm 60mm Standard two lines gap is 50mm Ventilation efficiency 60% Sizes are available to be customized

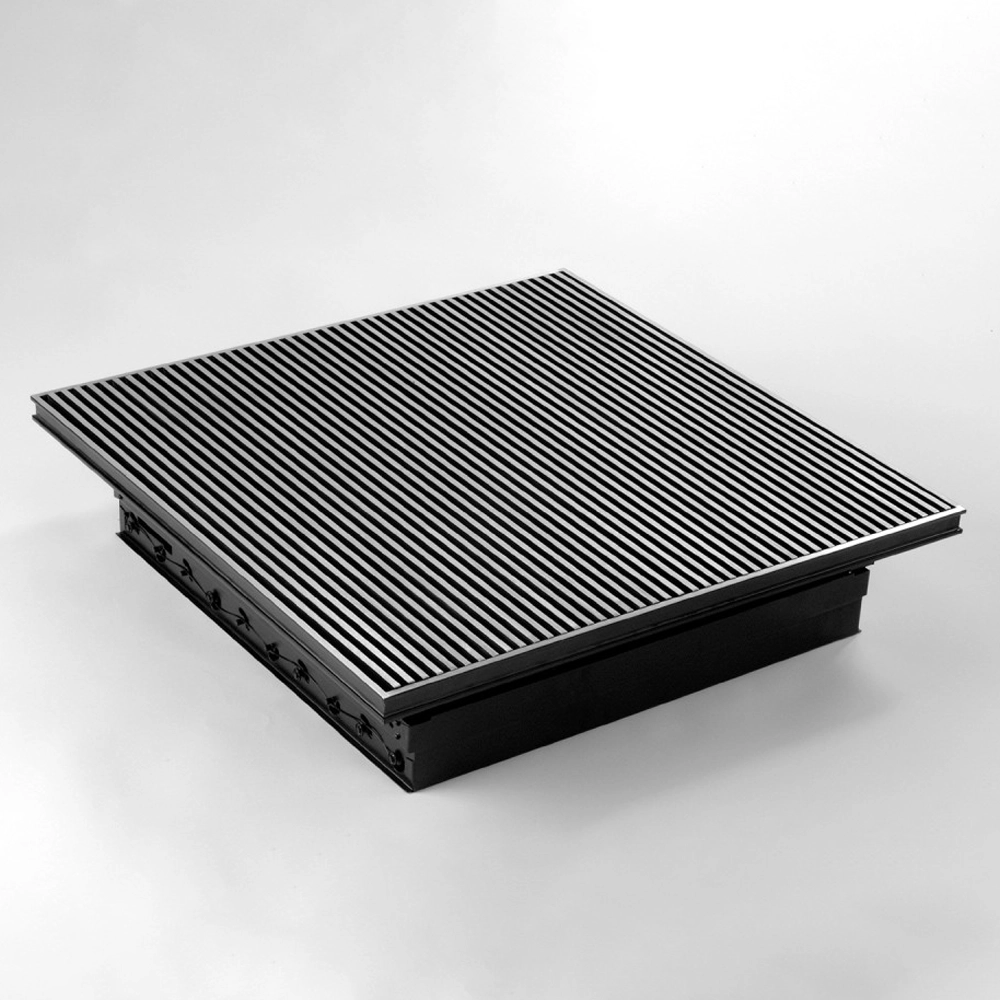

RPB-Grille Fire Resistant Air Transfer Grilles

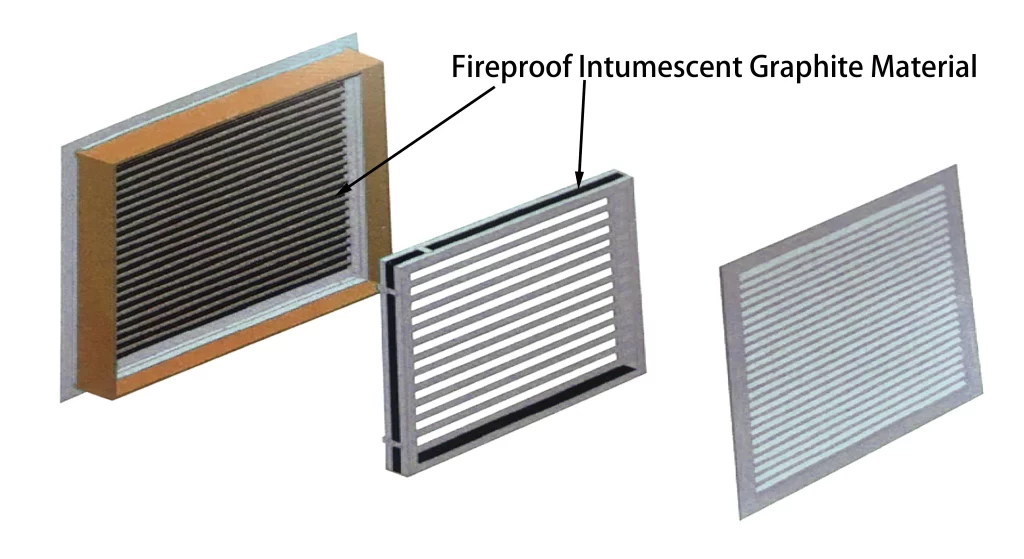

RESSA grille consists of a zinc alloy frame and a graphite-based intumescent material core in the middle.
When exposed to fire, the pull spring regains its elastic function as the easily melting plate of the grille begins to melt and break.

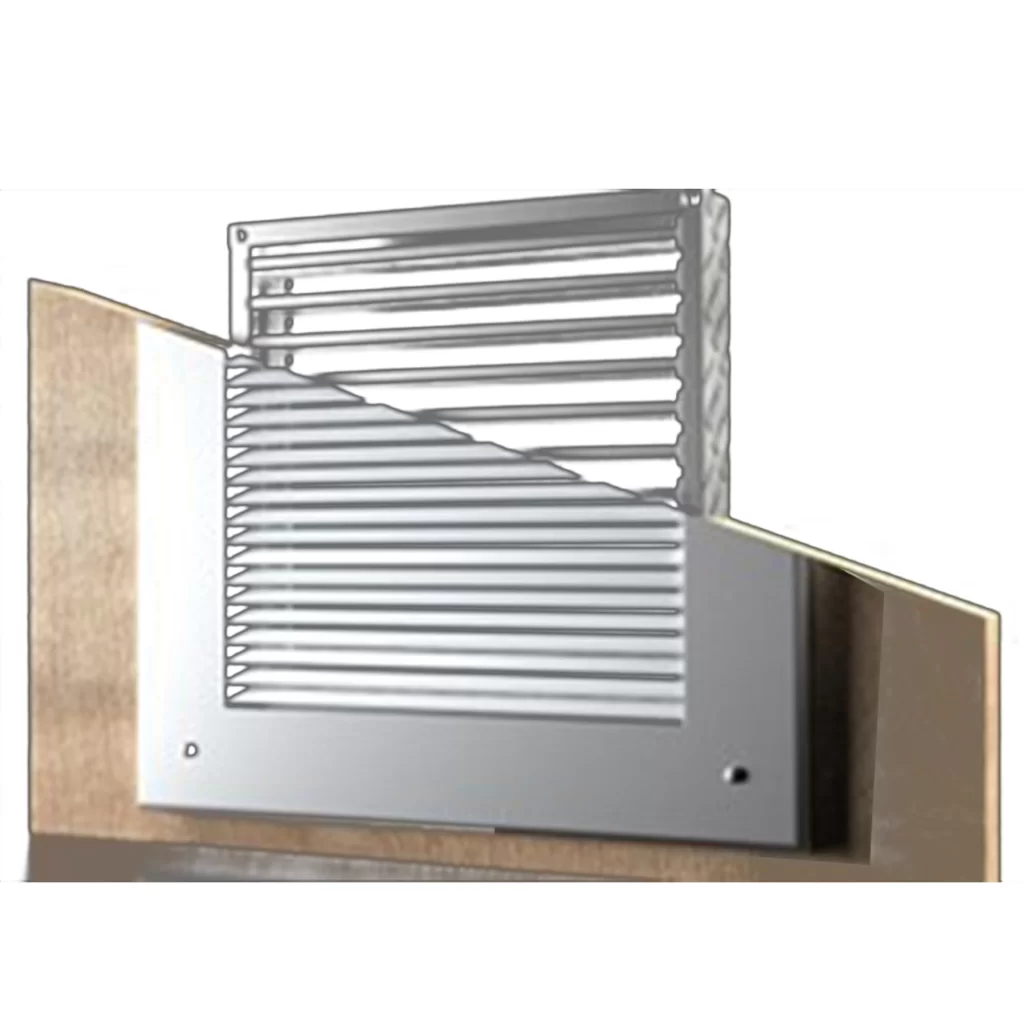

There is often a requirement for a ventilation aperture to be cut into a fire-resisting compartment wall or door. This penetration compromises the integrity of the element, so it is necessary to install a suitable fire-resistant ventilator unit.
RESSA grille offers a specially designed solution to this problem by providing a lightweight intumescent ventilator system with reliable fire protection performance.

Send Inquiry

Fire-Resistant Ventilation Solutions for Compartment Walls/Doors

Fire-rated walls/doors often require ventilation apertures
Such penetrations compromise the fire integrity of the structural element

Solution: Fire-Resistant Ventilator Unit

Essential to install specialized fire-rated ventilation systems
Maintains compartmentalization while allowing airflow

RESSA Grille Advantages

Lightweight intumescent design: Expands under heat to seal openings
Purpose-engineered: Specifically developed for fire-rated applications
Preserves fire resistance: Restores integrity of penetrated barriers

Key Features

Maintains required fire rating of walls/doors (typically 30-120 minutes)
Allows continuous ventilation while providing fire protection
Easy installation in new or retrofit applications

Get Your Custom Intumescent Fire Door Strips

RESSA is a trusted supplier of full range of intumescent fire door strips, with years of experience in creating high-quality fire protection solutions. It specializes in manufacturing high-quality custom fire door seals and gaskets to cover various need of customers. Here are your custom selections:

Get A free quote

Features that Make Our Intumescent Fire Door Strips Unique

expanding RESSA RPB Series Intumesent Fire Strips

Advanced Expansion Technology

RESSA intumescent fire door strips are engineered with a proprietary heat-activated expansion process that ensures rapid and uniform swelling of seals in fire, creating an impenetrable barrier against fire and smoke.

Superior Self Adhesive Performance

Surface mounted fire door strips equipped with industrial-grade adhesive, our strips self adhere firmly to a variety of surfaces, ensuring a long-lasting seal that won’t degrade over time or under extreme temperatures.

intumescent -RESSA RPB Series Fire door strips

Multi-Functional Sealing Performance

Beyond fire door insulation, some our intumescent fire door strips also offer excellent waterproof property, smoke prevent property, acoustic insulation and thermal properties, adding additional value to the installation.

BS476 Test RESSA RPB Series Intumesent Fire Strips

Tested Prooved and Certified Quality

Our products pass the testing of fire doors integrity and insulation test according to the BS476 test standard and have received certification from recognized safety standards organizations, assuring their effectiveness and reliability.

Manufacturing Process of Intumescent Fire Door Strips

  1. Raw Material Preparation: Gather materials including different kinds of fireproof intumescent materials, self adhesive, additives… ensure material expand to meet quality standards of fire doors requirement.
  2. Mixing: Mix the raw materials according to the formula and prepare them under specific temperature and humidity conditions. This may involve blending the expanding materials with other additives to achieve the desired physical and chemical properties.
  3. Extrusion or Calendering: Use an extrusion machine or pressing machine or inserting machine to shape the mixed intumescent materials, forming the initial shape of the intermittent strips.
  4. Cutting and Shaping: Cut the intermission strips to the specific dimensions and shapes. Precise molding may be achieved using molds or cutting tools.
  5. Quality Testing: Perform quality tests, including dimension checks, expansion performance, fire resistance, etc.for intumescent gasket.
  6. Packaging and Dispatch:Package the qualified intumescent strips and prepare them for dispatch to the market.
GET A FREE QUOTE
Intumescent strips production process

Our Certificates in Intumescent Fire Door Strips

RESSA Test certificate (4)
RESSA Test certificate (5)
RESSA Test certificate (6)
RESSA Test certificate (1)

Ready to Get the Perfect Fire Door Strips?

Contact Us to Get A Free Consultation

Fire Door Strips FAQs

Fire Door Strips are specialized seals installed on fire doors to prevent the passage of smoke, flames, and toxic gases during a fire, enhancing the door’s ability to compartmentalize and contain the spread of fire.

Over-painting of fire door strips should not compromise performance in a fire situation – however, do not suggest paint over fire door strips as this will certainly compromise the sealing containment performance and use life. If the intumescent strips on fire doors has already been painted over, you will need to replace it. Our seals are available in a range of colours, plus woodgrain and metallic finishes, so over-painting should not be necessary.

In the event of a serious fire, fire doors are one of the most important components in ensuring safe exit, containing the fire and saving lives. But they can be rendered useless by not using the correct components including intumescent strip. Gaps around the four sides of a fire door leaf are essential, it is the only way the door can open and close. But these gaps create a point of weakness, where fire can take hold and destroy the door, and toxic and smoke can pass through. RESSA intumescent strip works by sealing around the edges and gaps of a fire door and door frames in the event of a fire.

In essence, all intumescent do the same job, but not necessarily in the same way. You’ll need to know which specifications you require; consult our technical team to discuss this area in depth at [email protected].

Yes, RPB Series flexible fire door strips are suitable for both new builds and for retrofitting into existing structures, providing an effective fire-stopping solution. The intallation method is very easy by self-adhesive.
